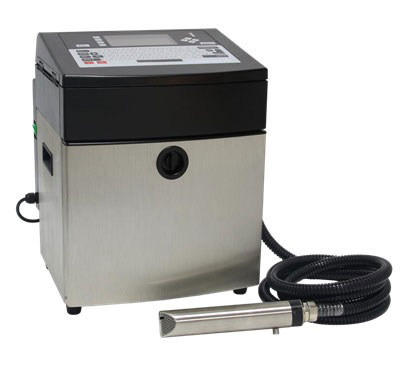

Continuous InkJet (CIJ) Printer

VSJET 760

Small Character Inkjet Printer

  • Budget-friendly & Reliable
  • One-Click Auto Start
  • Intuitive operation Easy-to-use System Operation
  • Consistently high quality text and images printing (up to 5 lines), even onstructured and uneven surfaces
  • Quick start-up and shut-down procedures with Qutomatic Cleaning Function
  • IP 65 rated for challenging environmental conditions; suitablefor usein dusty environmen
  • Efficient use of consumables translates to savings foryou!
CIJ

CIJ

The compact VSJET 760 is fully tailored to meet practical requirements and performs excellently.

Printing

  • Up to 5 lines
  • 34 pixels
  • Font size 2 -15 mm
  • Max. speed: 2,400 characters / second (5x5 matrix) 2,200 characters / second (7x5 matrix)
  • Text composition: automatic time and date functions, consecutive numbering, bar codes, logos

Technical data

Dimensions: Control unit: 410 x 330 x 445 mm (incl. operating terminal)

Housing: Stainless steel IP 65 protection class (no compressed air required)

Temperature: +50C to +400C; relative humidity max. 90 %, non-condensing

Error Diagnosis: Automatic diagnosis displayed in clear text

Power Supply : 86 -264 V - 10 %, 50 -60 Hz Max. power consumption 0.5 / 0.25 A

Safety standard: Ink return control; Automatic viscosity and ink level control; Remote monitoring of printing errors; Electronics and ink system are installed separately; Practically emission-free
