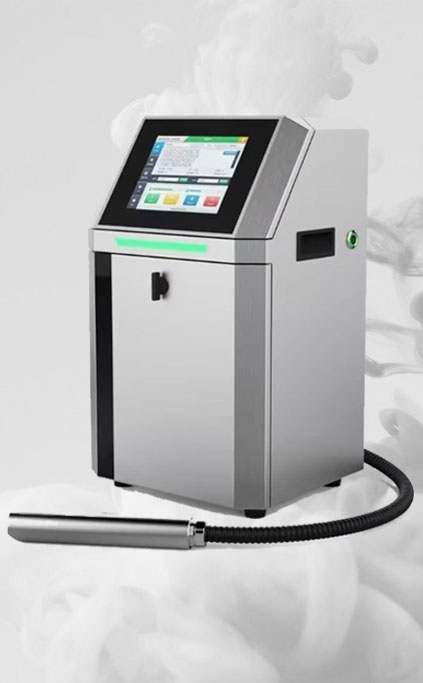

DY 8500 Series
Continuous Inkjet Series
With the goal of stability and reliability, a new milestone in inkjet printing
DY 8500 series, with its compact and exquisite body design, can easily integrate into various compact production environments. The advanced ink drop control technology used ensures that every print is clear and legible, regardless of harsh environments such as moisture and oil, and maintains the clarity and readability of the logo for a long time.
- More stable operation: Constant temperature nozzle, can stably print at minus 30°C
- Prevent production stoppage: Solvents are saved up to 85 hours/bottle, and the amount of solvent used can be adjusted
- Intelligent shutdown and power off: No need to clean the nozzle for one month of continuous work
- Reduced the cost of use by 50%: Dual viscosity control of flight time/viscometer
- Reduce 90% of manual operations: Can start printing normally after long-term shutdown
Rock-solid design, fearless of all kinds of harsh environments
Providing you with professional printing solutions Cooperation· Development Win-Win
Convenient intelligent shutdown
- 1-15 days intelligent short-term shutdown
- Long-time shutdown for more than 15 days
- At certain intervals, the inkjet printer automatically cleans the nozzle and pipeline, without manual shutdown and cleaning
Excellent printing quality
- The integrated ink path control system meets the requirements of accurate font printing at various working environment speeds.
- Advanced nozzle technology ensures the printing of different high-quality codes on a variety of materials.
Super easy to use
- The simple operating system has lower requirements for operators, fast on-the-job training, and shortened training time. The plug-and-play ink/solvent delivery system is simple, convenient, and efficient in using ink/solvent.
- The integrated design simplifies spare parts replacement and quickly recovers from downtime.
Excellent stability
- The automatic calibration function automatically adjusts the printing parameters according to the changes in the actual working environment without human intervention.
- The automatic cleaning function of the nozzle ensures that the equipment can be used continuously and normally without manual cleaning. It can still print normally after being shut down for a long time. The port adopts IP65 grade design and supports serial port, network port, counter one-key reset and information control functions.
Technical Specifications
| Model | DY 8500 | DY 8500 S | DY 8500 W |
|---|---|---|---|
| Nozzle size | 50μm, 60μm, 70μm | 50μm, 60μm, 70μm | 50μm, 60μm, 70μm |
| Font dot matrix | 5, 7, 9, 12, 16, 24dots | 5, 7, 9, 12, 16, 24, 32, 34dots | 5, 7, 9, 12, 16, 24, 32, 34dots |
| Max printing lines | 4 lines | 6 lines | 6 lines |
| Font height | 1.5–15mm | 1.5–20mm | 1.5–20mm |
| Ink mixer | No | No | Yes |
| Viscosity detection | Time-of-flight viscosity test & physical viscometer test | Time-of-flight viscosity test & physical viscometer test | Time-of-flight viscosity test & physical viscometer test |
| Printing speed | Up to 380 m/min | Up to 380 m/min | Up to 380 m/min |
| 1D code | UPCA; EAN 8; 13; Code 128 A, B & C; UCC/EAN 128; Code 39; 125 code; GS | UPCA; EAN 8; 13; Code 128 A, B & C; UCC/EAN 128; Code 39; 125 code; GS | UPCA; EAN 8; 13; Code 128 A, B & C; UCC/EAN 128; Code 39; 125 code; GS |
| 2D code | DM; QR error correction mode L, M, Q, or H | DM; QR error correction mode L, M, Q, or H | DM; QR error correction mode L, M, Q, or H |
| Information storage | 1000 items | 1000 items | 1000 items |
| Language | Chinese, English, Thai, Spanish; more languages are coming | Chinese, English, Thai, Spanish; more languages are coming | Chinese, English, Thai, Spanish; more languages are coming |
| User interface | 8-inch high-sensitivity TFT LCD touch screen, WYSIWYG touch screen, convenient for editing information | 8-inch high-sensitivity TFT LCD touch screen, WYSIWYG touch screen, convenient for editing information | 8-inch high-sensitivity TFT LCD touch screen, WYSIWYG touch screen, convenient for editing information |
| Input/output interface | Encoder, sensor, alarm light, USB, network port, RS-232 | Encoder, sensor, alarm light, USB, network port, RS-232 | Encoder, sensor, alarm light, USB, network port, RS-232 |
| Protection level/weight | IP65, 22KG | IP65, 22KG | IP65, 22KG |
| Head size | Length 258mm, diameter 42mm | Length 258mm, diameter 42mm | Length 258mm, diameter 42mm |
| Hose length | 3 meters | 3 meters | 3 meters |
| Host size | 325×300×503mm | 325×300×503mm | 325×300×503mm |
| Solvent consumption | Minimum to 8.8 ml/hour (specific temperature) | Minimum to 8.8 ml/hour (specific temperature) | Minimum to 8.8 ml/hour (specific temperature) |
| Operating temperature/relative humidity | -20~50°C / <90% RH, no condensation | -20~50°C / <90% RH, no condensation | -20~50°C / <90% RH, no condensation |
| Electrical requirements | Single-phase 100–240VAC, 50/60Hz | Single-phase 100–240VAC, 50/60Hz | Single-phase 100–240VAC, 50/60Hz |

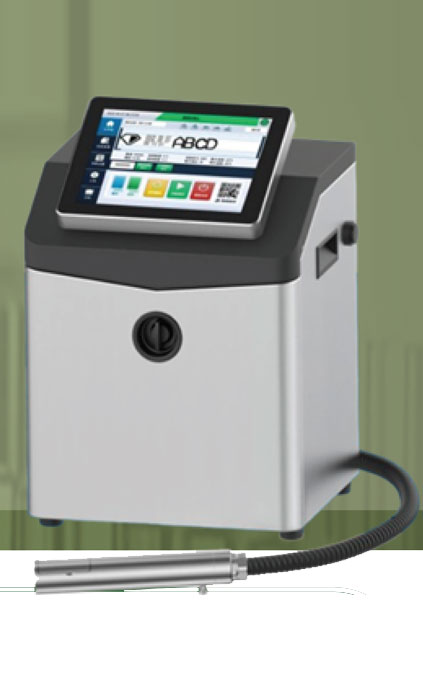

DY 8600 Series
Continuous Inkjet Series
For stabilityand reliability, start a new era in inkjet coding.
The DY8600 Series combines a compact, sleek design with seamless integration into tight production spaces. Its advanced droplet control technology guarantees sharp, legible prints even in challenging environments – resisting moisture, oil, and grime for long-lasting charity.
- Avoid production stoppages: Thermostatic printhead– stable jetting at -30°C
- Smart sleep/shutdown: No need to clean the nozzle for one month of continuous work
- 50% reduction in operating costs: Dual viscosty control of flight time/viscometer
- 90% less manual intervation required: Can start printingnormally after long-term shutdown
Rock-solid design, fearless of all kinds of harsh environments
Providing you with professional printing solutions Cooperation· Development Win-Win
Intelligent sleep shutdown
- The inkjet printer automatically cleans the nozzles and pipelines at regular intervals to avoid nozzle blockages and other maltunctions caused by long term non - use
Excellent stability
- The automatic calibration function automatically adjusts according to the changes in the actualworking environment, reducing manual intervention.
- The automatic nozzle cleaning function ensures that the device can still printnormally even afterbeing shut down. The whole machine is designed with an IP65 rating and supports functions such as serialport, network port, one - key reset of the counter, and information control
Achieve both cost – effectiveness and high performance
- Equipped with an economical long - lastingfiltration system, it-sig nificantly reduces the cost of consumable replacement, completel y eliminating the burden of traditional high - price ink cartridges. The device is designed with the user in mind, featuring extremelysimple operation and convenient maintenance. It combines low up-front investment with long - term high cost - effectiveness, easily meeting the needs of multiple industries for efficient and precise marking.
Super easy to use
- The concise operatingsystem has lowerrequirements for operators, enablingthem to get started quickly.The plug-andplay ink/solvent systemhelps prevent errors. The excellent ink path design helps save usagecosts.
- The integrated design simplifies spare parts replacement and allows for a quick recovery from machine downtime.
Technical Specifications
| Model | DY 8600 | DY 8600 S | DY 8600 W |
|---|---|---|---|
| Nozzle size | 40μm, 50μm, 60μm, 70μm | 40μm, 50μm, 60μm, 70μm | 40μm, 50μm, 60μm, 70μm |
| Font dot matrix | 5, 7, 9, 12, 16, 24dots | 5, 7, 9, 12, 16, 24, 32, 34dots | 5, 7, 9, 12, 16, 24, 32, 34dots |
| Max printing lines | 4 lines | 6 lines | 6 lines |
| Font height | 1.5–15mm | 1.5–20mm | 1.5–20mm |
| Ink mixer | No | No | Yes |
| Viscosity detection | Time-of-flight viscosity test & physical viscometer test | Time-of-flight viscosity test & physical viscometer test | Time-of-flight viscosity test & physical viscometer test |
| Printing speed | Up to 380 m/min | Up to 380 m/min | Up to 380 m/min |
| 1D code | UPCA; EAN 8; 13; Code 128 A, B & C; UCC/EAN 128; Code 39; 125 code; GS | UPCA; EAN 8; 13; Code 128 A, B & C; UCC/EAN 128; Code 39; 125 code; GS | UPCA; EAN 8; 13; Code 128 A, B & C; UCC/EAN 128; Code 39; 125 code; GS |
| 2D code | DM; QR error correction mode L, M, Q, or H | DM; QR error correction mode L, M, Q, or H | DM; QR error correction mode L, M, Q, or H |
| Information storage | 1000 items | 1000 items | 1000 items |
| Language | Chinese, English, Thai, Spanish; more languages are coming | Chinese, English, Thai, Spanish; more languages are coming | Chinese, English, Thai, Spanish; more languages are coming |
| User interface | 8-inch high-sensitivity TFT LCD touch screen, WYSIWYG touch screen, convenient for editing information | 8-inch high-sensitivity TFT LCD touch screen, WYSIWYG touch screen, convenient for editing information | 8-inch high-sensitivity TFT LCD touch screen, WYSIWYG touch screen, convenient for editing information |
| Input/output interface | Encoder, sensor, alarm light, USB, network port, RS-232 | Encoder, sensor, alarm light, USB, network port, RS-232 | Encoder, sensor, alarm light, USB, network port, RS-232 |
| Protection level/weight | IP65, 22KG | IP65, 22KG | IP65, 22KG |
| Head size | Length 258mm, diameter 42mm | Length 258mm, diameter 42mm | Length 258mm, diameter 42mm |
| Hose length | 3 meters | 3 meters | 3 meters |
| Host size | 325×300×503mm | 325×300×503mm | 325×300×503mm |
| Solvent consumption | Minimum to 8.8 ml/hour (specific temperature) | Minimum to 8.8 ml/hour (specific temperature) | Minimum to 8.8 ml/hour (specific temperature) |
| Operating temperature/relative humidity | -20~50°C / <90% RH, no condensation | -20~50°C / <90% RH, no condensation | -20~50°C / <90% RH, no condensation |
| Electrical requirements | Single-phase 100–240VAC, 50/60Hz | Single-phase 100–240VAC, 50/60Hz | Single-phase 100–240VAC, 50/60Hz |
